This article explains the differences between gate and butterfly valves, their application suitability, Key differences. Gate valves are used to turn on and off flow, while butterfly valves can regulate flow through partial disc closure. They are part of the quarter-turn valves family and can be shut off faster than gate valves. Gate valves are suitable for high-pressure systems, while butterfly valves are preferred for larger port sizes.
Gate valves have a straight-through design to prevent media accumulation and can withstand higher pressures than butterfly valves. They are also suitable for larger port sizes. Therefore, it is crucial to understand the differences between these two valve types to avoid unnecessary setbacks in operations. Selecting the right valve for your application according to your requirements and needs is important for your excellent efficiency and overall performance.

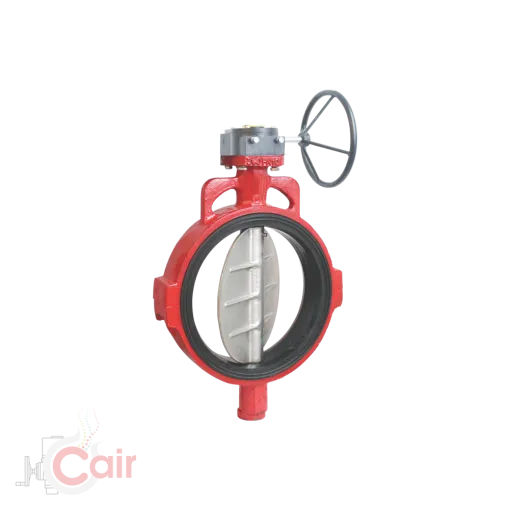

Butterfly Valve: An In-Depth Exploration
A butterfly valve is a quarter-turn valve used to regulate flow in pipelines. It consists of a circular disc mounted on a rotating shaft, which can be closed or opened to allow fluid to pass through.
Butterfly valves are known for their compact design, ease of operation, and low-pressure drop, making them ideal for applications where space is limited and quick shut-off is required.
How does a Butterfly Valve work?
They are used in various processes, including industries, media, water collection, supply, and distribution, and pumping stations for flow isolation. They offer advantages such as compactness, easy fabrication, low-cost, lightweight end products, faster actuation rates, and smaller installation footprints.
Butterfly valves are available in various shapes and sizes, with three offset designs: zero offset, double offset, and triple offset. The valve works by turning the handle 90° or using a pneumatic or electric actuator to rotate the disc.
Gate Valve: A Detailed Examination
A gate valve is a type of valve that uses a flat or wedge-shaped gate or disc to start or stop fluid flow. It is commonly used in applications requiring a straight-line flow of fluid and minimal flow restriction.
Gate valves are named after their disc, which behaves like a gate by either stopping or allowing media flow.
How does a Gate Valve Work?
They are multi-turn valves, meaning the handwheel must turn more than 360° to fully open or close the valve. Gate valves cannot modulate or throttle flow due to a nonlinear relationship between the gate’s travel and flow rate.
The gate valve is the most common valve used in systems delivering water, as it operates on linear motion and can either completely open or close the water flow. Its simple design, functionality, and versatility make it employed in a vast array of low-pressure-drop applications.
Gate valves are designed to be used with pipes with bigger diameters, and they vary in material, sizes, pressure ratings, high-temperature ranges, and style of bonnets and gates. There are three types of gate valves: disk, body bonnet joints, and stem movement designs.
Browse our curated collection of Gate Valve at one click.
The Applications of Butterfly Valves and Gate Valves
Gate Valves are used in air, fuel, gas, feedwater, steam, lube oil, and other systems are typical applications. These valves can be used in air, gases, or liquid systems.
Butterfly Valves are widely used in various industries, including water treatment, chemical processing, and HVAC systems, due to their efficient operation, compact size, and ability to handle large volumes of fluid with minimal pressure drop. These valves are used in the pharmaceutical, chemical, and food industries or in the water flow control in power plants.
Key differences between Butterfly Valve and Gate Valve
There are many factors to consider when deciding whether a gate or butterfly valve is correct for a given application. Below we have described the key difference between the Butterfly Valve vs Gate Valve and which one is better:
- Cost: A Butterfly valve is typically less expensive than a gate valve, especially at larger port diameters.
- Installation Space: A Butterfly Valve takes up less installation space than a gate valve.
- Weight: A Butterfly valve weighs less than a gate valve, the latter may need support structures at larger port diameters.
- Maintenance: While a butterfly valve is relatively easy to maintain, repair, or install due to its small size and low weight, its center disc makes it not suitable for systems that use pigging and swabbing for cleaning purposes. On the other hand, a gate valve is ideal for such maintenance.
- Operation: A butterfly valve can be close faster than a similar port diameter valve. However, this fact means that butterfly valves are more susceptible to water hammer.
- Flow Regulation: A Butterfly valve can modulate or throttle flow, whereas a gate valve can only be on/off.
- Flow Resistance: A gate valve offers less flow resistance and, therefore, less pressure drop than a butterfly valve.
- Pressure: Gate valves can handle higher pressures than butterfly valves.
- Performance: Butterfly valves, with a fixed disc for faster operation, are popular in industrial applications. Still, these valves are unsuitable for high-pressure applications or emergency pipeline shutoffs.
- Durability: Gate valves are linear-motion isolation valves for regulating the water flow. They reduce pressure loss in piping systems and are durable but semi-open valves experience more wear and tear.
